Page asset schema
Reference documentation providing information on the page asset schema.
Table of Contents
What is a page asset schema
Page assets in Flex have a structure that is defined by the page asset schema. The Flex page asset schema is based on JSON schema.
If you are not familiar with the JSON schema, you can learn more in the Understanding JSON schema ebook.
Information
It is good to note that the content page asset schema is not the same as a website structured data schema:
- Flex page asset schema is a Flex-specific description of the data being returned from Flex Asset Delivery API
- Schema.org structured data schema is a general vocabulary for
representing the data content of a page in a way that is easily
readable by e.g. search engines.
Page asset schema is also distinct from an extended data search schema:
- Page asset schema relates to page assets created by operators through Flex Console. It enables building client applications that can predictably handle page asset data.
- Extended data search schema relates to listings or users. It enables searching and filtering users and listings through the Flex APIs on the marketplace.

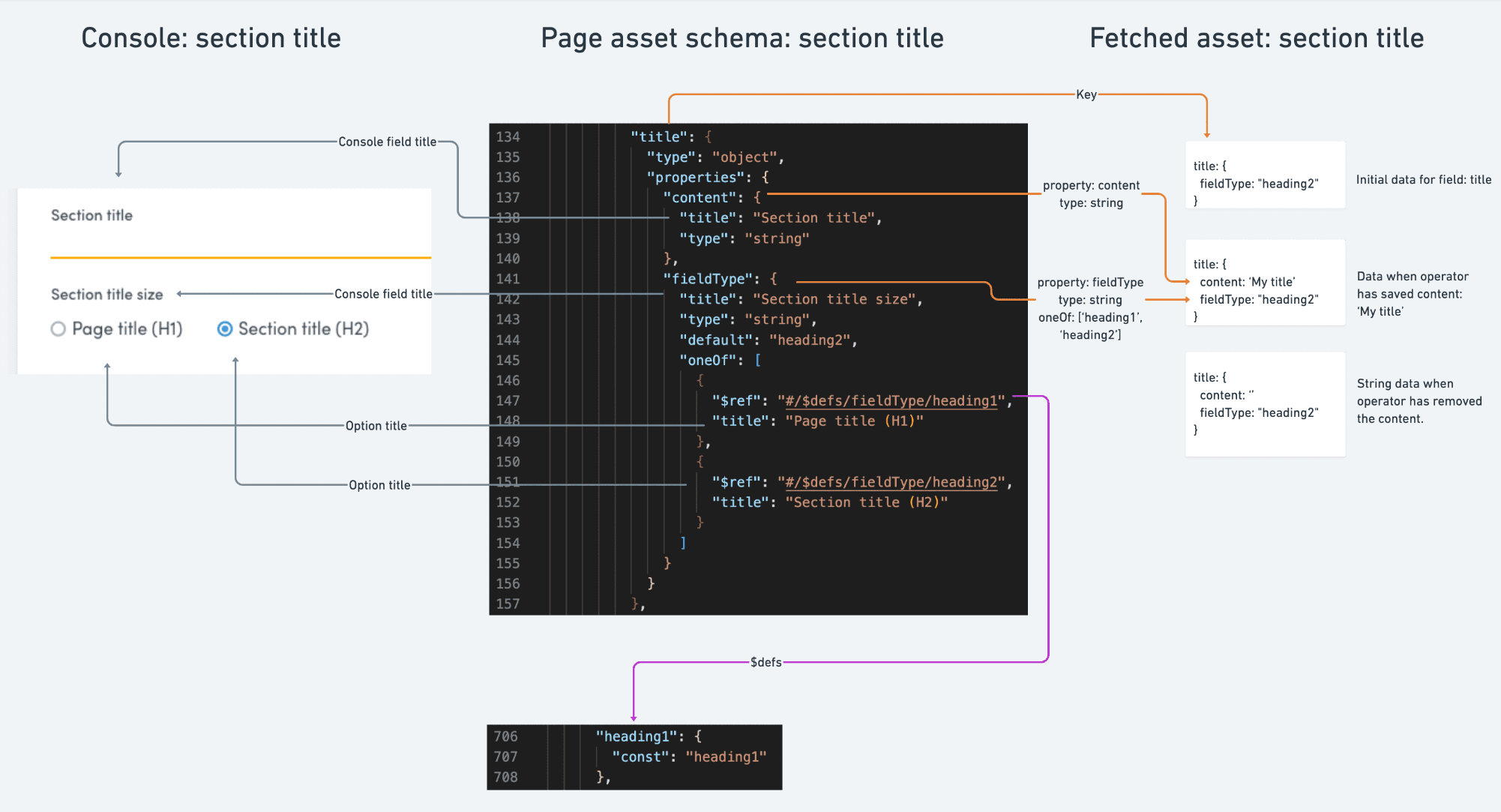

The page asset schema determines the structure of the page in both Flex Console and the page asset fetched from Asset Delivery API.
- The page is created and modified in Flex Console, structured by the page asset schema
- The page asset is then fetched to the client, and the data structure for all pages can be predicted based on the page asset schema.
Page asset schema syntax: properties and $defs
The page asset schema itself has two main parts:
- properties
- $defs
Properties describe the main structure of the page asset, whereas $defs contain subschemas. Subschemas are additional attributes that can be reused in several properties.
- Read more about defs in JSON schema
For instance, a page section's call to action has an optional internal button link. In the schema, the fieldType attribute determines whether the section has a call to action, and whether it is an internal link or an external link.
The schema then determines that if fieldType is required and is defined as internal button link, the relevant additional attributes are added to callToAction .
{
"callToAction": {
"type": "object",
"properties": {
"fieldType": {
"title": "Section call to action",
"type": "string",
"default": "none",
"description": "The action the user is prompted to take after viewing the section.",
"oneOf": [
{
"$ref": "#/$defs/fieldType/none",
"title": "No call to action"
},
{
"$ref": "#/$defs/fieldType/internalButtonLink",
"title": "Internal link",
"description": "Link to a page in your marketplace. Displayed as a button."
},
{
"$ref": "#/$defs/fieldType/externalButtonLink",
"title": "External link",
"description": "Link to a page outside your marketplace. Opens in a new tab. Displayed as a button."
}
]
}
},
"allOf": [
{
"if": {
"properties": {
"fieldType": {
"$ref": "#/$defs/fieldType/internalButtonLink"
}
},
"required": ["fieldType"]
},
"then": {
"$ref": "#/$defs/internalButtonLink"
}
}
]
}
}The definitions for fieldType/internalButtonLink and internalButtonLink can be found in $defs.
{
"$defs": {
"fieldType": {
"none": {
"const": "none"
},
"internalButtonLink": {
"const": "internalButtonLink"
}
},
"internalButtonLink": {
"properties": {
"content": {
"title": "Internal link text",
"type": "string",
"minLength": 1
},
"href": {
"description": "Include only the path after your domain. For example, if you want to link to your About page, use /p/about.",
"title": "Internal link address",
"type": "string",
"examples": [
"#section-id-as-anchor",
"/absolute/path/to/page"
],
"pattern": "^(?![a-zA-Z][a-zA-Z\\+\\.\\-]*\\:)",
"minLength": 1
}
},
"required": [
"content",
"href"
]
}

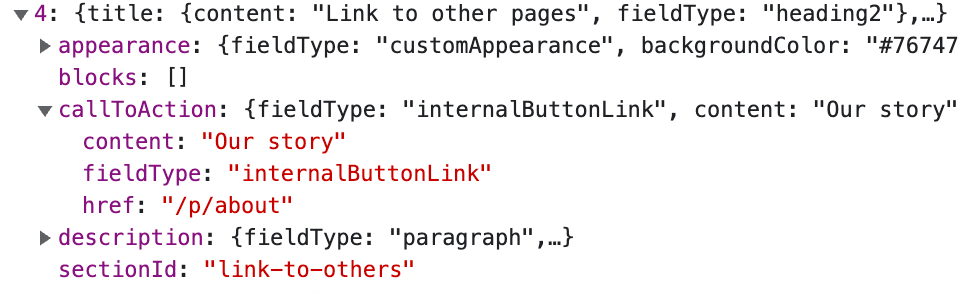

}For a page asset section where callToAction.fieldType is internal button link, callToAction will also have the properties defined in internalButtonLink.
Using page asset schema when building a client
Since the page asset schema defines the structure of the page asset, any client applications need to be built so that they can handle all situations where the data is valid according to the schema. For instance, required attributes are explicitly defined in the schema, so all other attributes should be considered optional.
For instance:
- sectionId is required, and has a minimum length of 1. Client apps can expect all sections to have a sectionId string of 1 or more characters.
- section.title is not required. Client apps can expect section.title to be an object, or null.
- section.title.content is not required. Clients can expect section.title.content to be a string with 1 or more characters, or an empty string, or null.
Information
The schema is subject to change, in the sense that new properties may be introduced as time goes on, so client implementations should be able to handle those situations.
Full page asset schema
You can download the full page asset schema here:
The representation below shows the page asset schema without _editor attributes, which are only used in Flex Console internally and are subject to change.
{
"type": "object",
"properties": {
"meta": {
"title": "SEO & Social",
"type": "object",
"properties": {
"pageTitle": {
"type": "object",
"properties": {
"fieldType": {
"const": "metaTitle",
"default": "metaTitle"
},
"content": {
"type": "string",
"maxLength": 55,
"title": "Page title",
"description": "Displayed in browser tab and search engines."
}
}
},
"pageDescription": {
"type": "object",
"properties": {
"fieldType": {
"default": "metaDescription",
"const": "metaDescription"
},
"content": {
"type": "string",
"title": "Page description",
"description": "A summary of the content of the page, displayed in search engines."
}
}
},
"socialSharing": {
"type": "object",
"properties": {
"fieldType": {
"const": "openGraphData",
"default": "openGraphData"
},
"title": {
"type": "string",
"title": "Page title for social media",
"description": "Displayed when someone shares the page in social media."
},
"description": {
"type": "string",
"title": "Page description for social media",
"description": "A summary of the content of the page, displayed when someone shares the page in social media."
},
"image": {
"title": "Social media image",
"type": "object",
"description": "Displayed when someone shares the page in social media. The image should have a 1.91:1 aspect ratio and minimum dimensions of 1200x630 pixels. It should not exceed 20MB in size.",
"properties": {
"_ref": {
"type": "object",
"properties": {
"resolver": {
"const": "image"
},
"target": {
"type": "string"
},
"params": {
"const": {
"variants": {
"social600": {
"width": 600,
"height": 600,
"fit": "scale"
},
"social1200": {
"width": 1200,
"height": 1200,
"fit": "scale"
}
}
}
}
}
}
}
}
}
}
}
},
"sections": {
"title": "Sections",
"type": "array",
"maxItems": 20,
"items": {
"title": "Section details",
"type": "object",
"properties": {
"sectionId": {
"description": "Section identifier. Start with a lowercase character. Use only lowercase characters, numbers, dashes (-) and underscores (_), and no spaces.",
"type": "string",
"title": "Section ID",
"minLength": 1,
"pattern": "^[a-z][a-z0-9_\\-]*$"
},
"sectionType": {
"description": "Determines the layout of Content Blocks.",
"type": "string",
"title": "Section template",
"oneOf": [
{
"const": "article",
"title": "Article",
"description": "Blocks on top of each other in a narrow layout optimized for reading."
},
{
"const": "carousel",
"title": "Carousel",
"description": "Blocks side by side, 1-4 blocks visible at a time, the rest revealed by swiping or scrolling."
},
{
"const": "columns",
"title": "Columns",
"description": "Blocks in a grid of 1, 2, 3, or 4 columns."
},
{
"const": "features",
"title": "Features",
"description": "Blocks on top of each other, text, and media side by side in an alternating order."
}
]
},
"title": {
"type": "object",
"properties": {
"content": {
"title": "Section title",
"type": "string"
},
"fieldType": {
"title": "Section title size",
"type": "string",
"default": "heading2",
"oneOf": [
{
"$ref": "#/$defs/fieldType/heading1",
"title": "Page title (H1)"
},
{
"$ref": "#/$defs/fieldType/heading2",
"title": "Section title (H2)"
}
]
}
}
},
"description": {
"type": "object",
"properties": {
"fieldType": {
"title": "Section description",
"type": "string",
"default": "paragraph",
"$ref": "#/$defs/fieldType/paragraph"
},
"content": {
"title": "Section description",
"type": "string"
}
}
},
"callToAction": {
"type": "object",
"properties": {
"fieldType": {
"title": "Section call to action",
"type": "string",
"default": "none",
"description": "The action the user is prompted to take after viewing the section.",
"oneOf": [
{
"$ref": "#/$defs/fieldType/none",
"title": "No call to action"
},
{
"$ref": "#/$defs/fieldType/internalButtonLink",
"title": "Internal link",
"description": "Link to a page in your marketplace. Displayed as a button."
},
{
"$ref": "#/$defs/fieldType/externalButtonLink",
"title": "External link",
"description": "Link to a page outside your marketplace. Opens in a new tab. Displayed as a button."
}
]
}
},
"allOf": [
{
"if": {
"properties": {
"fieldType": {
"$ref": "#/$defs/fieldType/internalButtonLink"
}
},
"required": ["fieldType"]
},
"then": {
"$ref": "#/$defs/internalButtonLink"
}
},
{
"if": {
"properties": {
"fieldType": {
"$ref": "#/$defs/fieldType/externalButtonLink"
}
},
"required": ["fieldType"]
},
"then": {
"$ref": "#/$defs/externalButtonLink"
}
}
]
},
"appearance": {
"type": "object",
"properties": {
"fieldType": {
"title": "Section appearance",
"type": "string",
"default": "defaultAppearance",
"oneOf": [
{
"$ref": "#/$defs/fieldType/defaultAppearance",
"title": "Default"
},
{
"$ref": "#/$defs/fieldType/customAppearance",
"title": "Custom",
"description": "Customize background color, background image, and text color."
}
]
}
},
"if": {
"properties": {
"fieldType": {
"const": "customAppearance"
}
}
},
"then": {
"properties": {
"backgroundColor": {
"title": "Background color",
"description": "Only displayed if the section doesn’t have a background image.",
"type": "string",
"pattern": "^#[A-Fa-f0-9]{6}"
},
"backgroundImage": {
"title": "Background image",
"type": "object",
"description": "For the best result, the image should have the minimum dimensions of 1600x1200 pixels. It should not exceed 20MB in size.",
"properties": {
"_ref": {
"type": "object",
"properties": {
"resolver": {
"const": "image"
},
"target": {
"type": "string"
},
"params": {
"$ref": "#/$defs/imageParams/scaled"
}
}
}
}
},
"textColor": {
"title": "Text color",
"type": "string",
"default": "black",
"oneOf": [
{
"const": "black",
"title": "Black"
},
{
"const": "white",
"title": "White"
}
]
}
}
}
},
"blocks": {
"title": "Content Blocks",
"type": "array",
"maxItems": 20,
"items": {
"type": "object",
"properties": {
"blockId": {
"description": "Block identifier. Start with a lowercase character. Use only lowercase characters, numbers, dashes (-) and underscores (_), and no spaces.",
"title": "Block ID",
"type": "string",
"pattern": "^[a-z][a-z0-9_\\-]*$"
},
"blockType": {
"title": "Block type",
"const": "defaultBlock",
"$comment": "Currently, we only have one block type but in the future there could be many"
},
"media": {
"type": "object",
"properties": {
"fieldType": {
"title": "Block media",
"type": "string",
"default": "none",
"oneOf": [
{
"$ref": "#/$defs/fieldType/none",
"title": "No media"
},
{
"$ref": "#/$defs/fieldType/image",
"title": "Image"
},
{
"$ref": "#/$defs/fieldType/youtube",
"title": "YouTube video"
}
]
}
},
"allOf": [
{
"if": {
"properties": {
"fieldType": {
"$ref": "#/$defs/fieldType/image"
}
}
},
"then": {
"properties": {
"image": {
"title": "Image file",
"type": "object",
"description": "Most common image formats are supported. The file should not exceed 20MB in size.",
"properties": {
"_ref": {
"type": "object",
"properties": {
"resolver": {
"const": "image"
},
"target": {
"type": "string"
},
"params": {
"type": "object"
}
},
"required": ["resolver", "target"]
}
}
},
"aspectRatio": {
"$ref": "#/$defs/aspectRatio"
},
"alt": {
"description": "Short written description of an image is needed for accessibility and search engines.",
"title": "Image alt text",
"type": "string",
"minLength": 1
}
},
"required": ["alt"],
"allOf": [
{
"if": {
"properties": {
"aspectRatio": {
"const": "1/1"
}
}
},
"then": {
"properties": {
"image": {
"properties": {
"_ref": {
"properties": {
"params": {
"$ref": "#/$defs/imageParams/square"
}
}
}
}
}
}
}
},
{
"if": {
"properties": {
"aspectRatio": {
"const": "16/9"
}
}
},
"then": {
"properties": {
"image": {
"properties": {
"_ref": {
"properties": {
"params": {
"$ref": "#/$defs/imageParams/landscape"
}
}
}
}
}
}
}
},
{
"if": {
"properties": {
"aspectRatio": {
"const": "2/3"
}
}
},
"then": {
"properties": {
"image": {
"properties": {
"_ref": {
"properties": {
"params": {
"$ref": "#/$defs/imageParams/portrait"
}
}
}
}
}
}
}
},
{
"if": {
"properties": {
"aspectRatio": {
"const": "auto"
}
}
},
"then": {
"properties": {
"image": {
"properties": {
"_ref": {
"properties": {
"params": {
"$ref": "#/$defs/imageParams/original"
}
}
}
}
}
}
}
}
]
}
},
{
"if": {
"properties": {
"fieldType": {
"$ref": "#/$defs/fieldType/youtube"
}
}
},
"then": {
"properties": {
"youtubeVideoId": {
"description": "The part of a YouTube link after \"watch?v=\". For example, for the video youtube.com/watch?v=UffchBUUIoI, the ID is UffchBUUIoI.",
"type": "string",
"title": "YouTube video ID",
"pattern": "^[0-9A-Za-z_-]+$"
},
"aspectRatio": {
"$ref": "#/$defs/aspectRatio"
}
},
"required": ["youtubeVideoId", "aspectRatio"]
}
}
]
},
"title": {
"type": "object",
"properties": {
"content": {
"title": "Block title",
"type": "string"
},
"fieldType": {
"type": "string",
"title": "Block title size",
"default": "heading3",
"oneOf": [
{
"$ref": "#/$defs/fieldType/heading1",
"title": "Page title (H1)"
},
{
"$ref": "#/$defs/fieldType/heading2",
"title": "Section title (H2)"
},
{
"$ref": "#/$defs/fieldType/heading3",
"title": "Section subtitle (H3)"
}
]
}
}
},
"text": {
"type": "object",
"properties": {
"fieldType": {
"description": "You can format text with markdown.",
"type": "string",
"title": "Text element type",
"default": "markdown",
"$ref": "#/$defs/fieldType/markdown"
},
"content": {
"title": "Block text",
"type": "string"
}
}
},
"callToAction": {
"type": "object",
"properties": {
"fieldType": {
"title": "Block call to action",
"type": "string",
"default": "none",
"description": "The action the user is prompted to take after viewing the block.",
"oneOf": [
{
"$ref": "#/$defs/fieldType/none",
"title": "No call to action"
},
{
"$ref": "#/$defs/fieldType/internalButtonLink",
"title": "Internal link",
"description": "Link to a page in your marketplace. Displayed as a button."
},
{
"$ref": "#/$defs/fieldType/externalButtonLink",
"title": "External link",
"description": "Link to a page outside your marketplace. Opens in a new tab. Displayed as a button."
}
]
}
},
"allOf": [
{
"if": {
"properties": {
"fieldType": {
"$ref": "#/$defs/fieldType/internalButtonLink"
}
},
"required": ["fieldType"]
},
"then": {
"$ref": "#/$defs/internalButtonLink"
}
},
{
"if": {
"properties": {
"fieldType": {
"$ref": "#/$defs/fieldType/externalButtonLink"
}
},
"required": ["fieldType"]
},
"then": {
"$ref": "#/$defs/externalButtonLink"
}
}
]
}
},
"required": ["blockId", "blockType"]
}
}
},
"if": {
"anyOf": [
{
"properties": {
"sectionType": {
"const": "columns"
}
},
"required": ["sectionType"]
},
{
"properties": {
"sectionType": {
"const": "carousel"
}
},
"required": ["sectionType"]
}
]
},
"then": {
"properties": {
"numColumns": {
"title": "Number of columns",
"type": "integer",
"oneOf": [
{
"const": 1,
"title": "1"
},
{
"const": 2,
"title": "2"
},
{
"const": 3,
"title": "3"
},
{
"const": 4,
"title": "4"
}
]
}
},
"required": ["numColumns"]
},
"required": ["sectionId", "sectionType"]
}
}
},
"$defs": {
"fieldType": {
"none": {
"const": "none"
},
"heading1": {
"const": "heading1"
},
"heading2": {
"const": "heading2"
},
"heading3": {
"const": "heading3"
},
"markdown": {
"const": "markdown"
},
"paragraph": {
"const": "paragraph"
},
"externalButtonLink": {
"const": "externalButtonLink"
},
"internalButtonLink": {
"const": "internalButtonLink"
},
"customAppearance": {
"const": "customAppearance"
},
"defaultAppearance": {
"const": "defaultAppearance"
},
"image": {
"const": "image"
},
"youtube": {
"const": "youtube"
}
},
"internalButtonLink": {
"properties": {
"content": {
"title": "Internal link text",
"type": "string",
"minLength": 1
},
"href": {
"description": "Include only the path after your domain. For example, if you want to link to your About page, use /p/about.",
"title": "Internal link address",
"type": "string",
"examples": [
"#section-id-as-anchor",
"/absolute/path/to/page"
],
"pattern": "^(?![a-zA-Z][a-zA-Z\\+\\.\\-]*\\:)",
"minLength": 1
}
},
"required": ["content", "href"]
},
"externalButtonLink": {
"properties": {
"content": {
"title": "External link text",
"type": "string",
"minLength": 1
},
"href": {
"description": "External link address should begin with http(s)://.",
"title": "External link address",
"type": "string",
"examples": ["http:", "https:"],
"pattern": "^(http|https):",
"minLength": 1
}
},
"required": ["content", "href"]
},
"imageParams": {
"scaled": {
"const": {
"variants": {
"scaled800": {
"width": 800,
"height": 800,
"fit": "scale"
},
"scaled1200": {
"width": 1200,
"height": 1200,
"fit": "scale"
},
"scaled2400": {
"width": 2400,
"height": 2400,
"fit": "scale"
}
}
}
},
"square": {
"const": {
"variants": {
"square400": {
"width": 400,
"height": 400,
"fit": "crop"
},
"square800": {
"width": 800,
"height": 800,
"fit": "crop"
},
"square1200": {
"width": 1200,
"height": 1200,
"fit": "crop"
},
"square2400": {
"width": 2400,
"height": 2400,
"fit": "crop"
}
}
}
},
"landscape": {
"const": {
"variants": {
"landscape400": {
"width": 400,
"height": 225,
"fit": "crop"
},
"landscape800": {
"width": 800,
"height": 450,
"fit": "crop"
},
"landscape1200": {
"width": 1200,
"height": 675,
"fit": "crop"
},
"landscape2400": {
"width": 2400,
"height": 1350,
"fit": "crop"
}
}
}
},
"portrait": {
"const": {
"variants": {
"portrait400": {
"width": 400,
"height": 600,
"fit": "crop"
},
"portrait800": {
"width": 800,
"height": 1200,
"fit": "crop"
},
"portrait1200": {
"width": 1200,
"height": 1800,
"fit": "crop"
},
"portrait2400": {
"width": 2400,
"height": 3600,
"fit": "crop"
}
}
}
},
"original": {
"const": {
"variants": {
"original400": {
"width": 400,
"height": 400,
"fit": "scale"
},
"original800": {
"width": 800,
"height": 800,
"fit": "scale"
},
"original1200": {
"width": 1200,
"height": 1200,
"fit": "scale"
},
"original2400": {
"width": 2400,
"height": 2400,
"fit": "scale"
}
}
}
}
},
"aspectRatio": {
"title": "Aspect ratio",
"type": "string",
"default": "auto",
"oneOf": [
{
"const": "1/1",
"title": "Square (1:1)"
},
{
"const": "16/9",
"title": "Landscape (16:9)"
},
{
"const": "2/3",
"title": "Portrait (2:3)"
},
{
"const": "auto",
"title": "Original"
}
]
}
}
}
