Change search filters in FTW

The search experience can be improved by adding search filters to narrow down the results. The filters rely on listing's indexed data.

There are 3 different UI contexts that render filters. On mobile layout, all the filters are rendered to modal inside SearchFiltersMobile component. On desktop layout, there are SearchFiltersPrimary for most important filters and extra filters are put to SearchFiltersSecondary panel which opens, when user clicks "More filters" button.

Filter types

The Flex template for web has different filter types: BookingDateRangeFilter, KeywordFilter, PriceFilter, SelectSingleFilter and SelectMultipleFilter. Select single and select multiple filters are generic in a way that they can be used to filter search results using different kinds of data. The price, and date range filters on the other hand are only used for filtering by price and date range. Listings with hourly bookings can also be filtered by their availability in a date range with an optional minimum duration. Keyword filter is a bit special case - there is more info about it later.

SelectSingleFilter and SelectMultipleFilter can be used with extended data. The SelectSingleFilter can be used to filter out listings with only one string value in related public data field. E.g. listing's publicData attribute could contain: category: 'smoke'. The related Marketplace API listing query could then be made with query parameter: pub_category=smoke.

The SelectMultipleFilter on the other hand can take multiple values for a single search parameter. In this case, listing entity could contain public data amenities: ['towels', 'bathroom', 'jacuzzi'] and the query parameter, to retrieve that listing among other search results, could be pub_amenities=has_any:jacuzzi,barbeque.

We'll tell you more about these filters later on in this article.

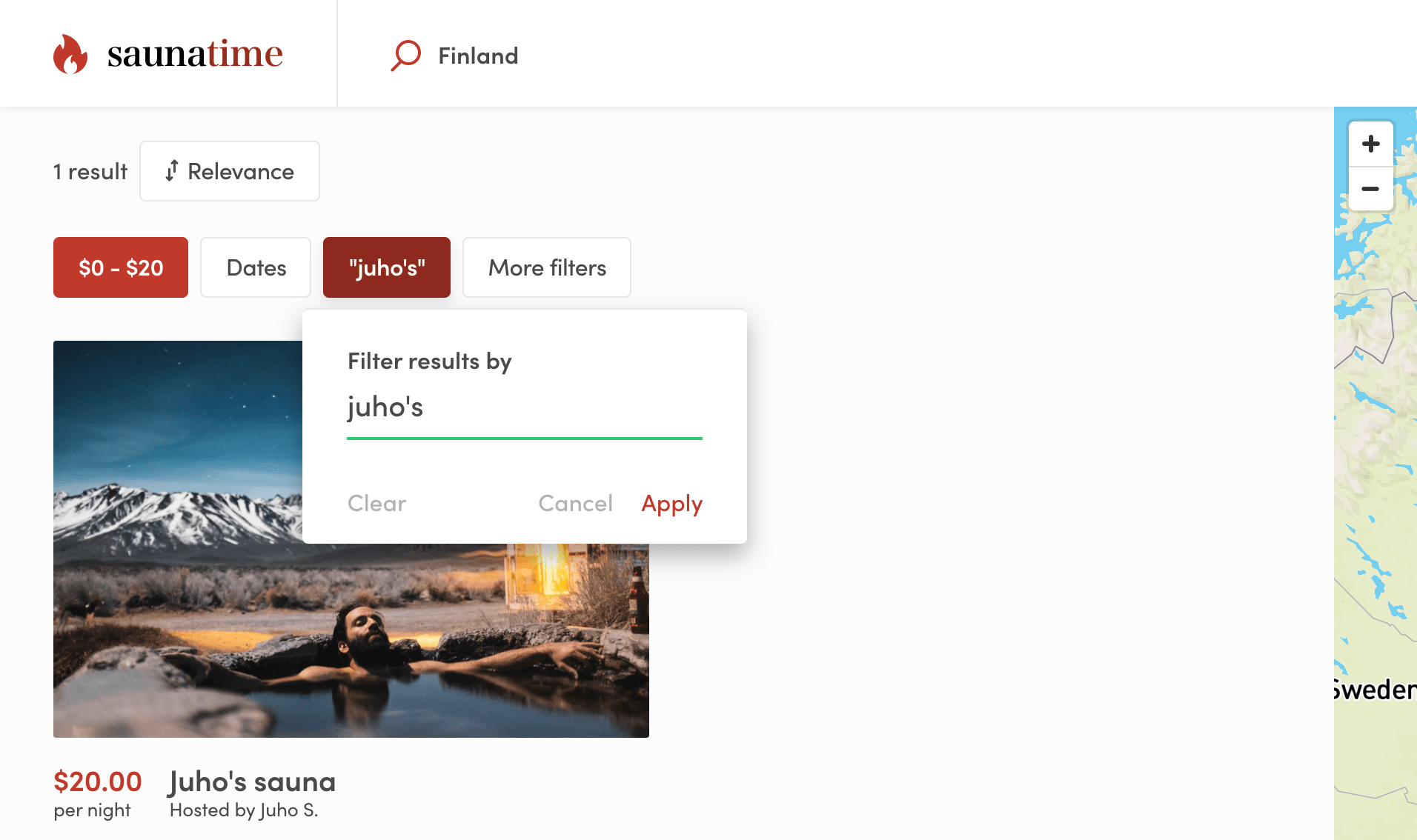

Keyword filter

Keyword filter works a bit differently than other filters. It does filter search results, but it also sorts those results according to strongly listing data (title, description, and possible extended data) correlates with the search string. Currently, there is no decay function that would map keyword match correlation with distance to origin and therefore, the origin param can't be used at the same time as the keyword. You can read more about how the keyword search works from related background article.

It is possible to remove location search from topbar and replace it with the keyword search or use them together (without origin param). Here's a rough guide on how to do it.

Note: search strings with only 1 or 2 letters have a longer timeout before the search query is made.

Adding a new search filter

Next we'll guide you through the steps of adding a capacity filter to the marketplace.

First step for adding a new filter is to make sure that the data being used for filtering is saved in the listing's publicData attribute. On how to achieve this, please refer to the Extend listing data in FTW how-to guide. Another aspect in search filters is that a search schema needs to be added to the data in order for API to index it for search. Adding search schema can be done by the Flex CLI.

Once a public data attribute is added to the listings and the data attribute is indexed, the listing searches can be filtered by that attribute by adding a query parameter that consists of a preceding "pub_" and the attribute name, so for the capacity attribute the parameter would be "pubcapacity". You might have guessed that "pub_" refers to public data, "meta_" would refer to _metadata, which is another type of extended data.

Further reading on public data can be found in the Extend listing data in FTW how-to guide.

Note: Only top-level attributes can be indexed.

Common changes

A few common changes are required to add a select single or a select multiple filter to desktop and mobile views.

First of all, filter configurations need to be defined in the marketplace-custom-config.js file:

└── src
    └── marketplace-custom-config.js

└── src
    └── config
        └── marketplace-custom-config.js

There you need to add the capacity filter's configurations to the filters array:

  {
    id: 'capacity',
    label: 'Capacity',
    type: 'SelectSingleFilter',
    group: 'secondary',
    queryParamNames: ['pub_capacity'],
    config: {
      // Schema type is enum for SelectSingleFilter
      schemaType: 'enum',

      options: [
        { key: '1to3', label: '1 to 3' },
        { key: '4to6', label: '4 to 6' },
        { key: '7to9', label: '7 to 9' },
        { key: '10plus', label: '10 plus' },
      ],
    },
  },

Note: you might have done this already if you followed the Extend listing data in FTW how-to guide.

In the above configuration, we defined filter's id and label. The label is not modified through the microcopy file (e.g. en.json), because we thought that having it here would make customizations easier. However, you could use <FormattedMessage id="some.microcopy.key.here" /> component instead of plain string if you want.

type configuration refers to existing filter component. The current filters that can deal with extended data are: SelectSingleFilter, and SelectMultipleFilter.

group can be 'primary' or 'secondary'. On desktop layout, primary filters are those which are visible by default and secondary filters are not visible. You can open secondary filters panel by clicking "More filters" button.

queryParamNames is defining the query parameter key(s) that the filter component can handle. For SelectSingleFilter and SelectMultipleFilter, you should use query param names that point to Marketplace API query params. For example, if you have "amenities" field in your listing's public data, the correct name for the query parameter should be pub_amenities.

config would contain any filter specific configurations. For example, PriceFilter has price range (min, max and step) defined there.

As a summary, that new filter configuration in filters array, is enough to render capacity filter on search page. That is, if you have capacity field defined in listing's public data and that public data has correct schema added to the search engine using Flex CLI.

Creating your own filter types

If you are creating new filter types note that we are using two different types of components: popup and plain. Popup components are rendered as primary dropdowns in the search view in SearchFiltersPrimary component. Plain components are used with SearchFiltersMobile and SearchFiltersSecondary. SearchFiltersSecondary opens sacondary filters in a distinct panel in order to fit additional filters to the desktop search view.

To make creating new filters easier, there are two generic components: FilterPoup and FilterPlain. These components expect that you give form fields as child component. Check SelectMultipleFilter to see how these components work.

When you have your custom filter component ready, you need to add it to SearchPage/FilterComponent.js:

└── src
    └── containers
        └── SearchPage
            └── FilterComponent.js
